android-pdf-viewer在android studio应用问题说明
栏目：综合技术时间：2016-10-12 09:09:26
android-pdf-viewer在android studio利用问题说明
小白1枚，之前1直是做.NET开发的，最近需要弄1个新闻app，能力有限，只能借助HTML5 WebAPP+android studio来完成这项工作。
android studio主要用WebView来加载发布好的WebApp，打包生产APP。
其中由于显示1些pdf文档，所以研究了1下，记录1下心得，同时也希望帮助到新手们。
android 显示网络pdf，基本原理：先将pdf文件通过DownloadManager下载得手机sdk某个文件夹中，然后通过android-pdf-viewer插件进行显示。
android-pdf-viewer插件可以直接到github上下载，地址：https://github.com/barteksc/AndroidPdfViewer
或直接到发布好的页面下载：https://github.com/barteksc/AndroidPdfViewer/releases
我下载的是：AndroidPdfViewer⑵.1.0版本zip包

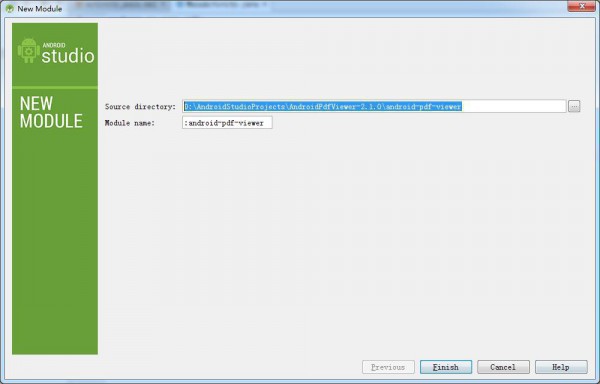

将下载AndroidPdfViewer⑵.1.0包解压出来，再你的app项目中，打开 File -> New -> Import Module 选择到刚才解压的文件夹
本人目录是：D:\AndroidStudioProjects\AndroidPdfViewer⑵.1.0\android-pdf-viewer
完成后，回提示先ERROR：
Error:Plugin with id ‘com.github.dcendents.android-maven’ not found.
解决方法：
点击你的工程Gradle Scripts目录下的bulid.gradle (Project:你的工程名)
在
buildscript {
repositories {
jcenter()
}
dependencies {
classpath ‘com.android.tools.build:gradle:2.0.0’
}
}
中dependencies的下添加 classpath ‘com.github.dcendents:android-maven-gradle-plugin:1.3’，
Mark Modules以后，出现新的ERROR：
Error:Plugin with id ‘com.jfrog.bintray’ not found.
此时一样在dependencies下添加：classpath “com.jfrog.bintray.gradle:gradle-bintray-plugin:1.0”
再次Mark Modules就不会报错了。
先就能够开始使用 android-pdf-viewer 插件了，
别忘记援用权限问题哦
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.DOWNLOAD_WITHOUT_NOTIFICATION"/>
<uses-permission android:name="android.permission.INSTALL_PACKAGES" />先代码为项目中report activity.java,实现了接收另外1个activity跳转过来同时传递参数pdf地址，然后通过DownloadManager下载完成以后，显示pdf。
package cn.cgrs.myphone;
import android.app.DownloadManager;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.content.SharedPreferences;
import android.database.Cursor;
import android.net.Uri;
import android.os.Environment;
import android.preference.PreferenceManager;
import android.provider.OpenableColumns;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.webkit.MimeTypeMap;
import android.webkit.WebSettings;
import android.webkit.WebView;
import android.widget.TextView;
import android.widget.Toast;
import com.github.barteksc.pdfviewer.listener.OnLoadCompleteListener;
import com.github.barteksc.pdfviewer.listener.OnPageChangeListener;
import com.github.barteksc.pdfviewer.scroll.DefaultScrollHandle;
import com.shockwave.pdfium.PdfDocument;
import java.io.File;
import java.io.UnsupportedEncodingException;
import java.net.URLEncoder;
import java.util.List;
public class Report extends AppCompatActivity implements OnPageChangeListener, OnLoadCompleteListener {
private com.github.barteksc.pdfviewer.PDFView pdfView ;
private TextView textView;
private DownloadManager downloadManager;
private SharedPreferences prefs;
private static String DL_ID = "downloadId";
Integer pageNumber = 0;
String pdfFileName = "yyy.pdf";
Uri uri;
String AUrl;
private Boolean isDown = false;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_report);
Intent intent = getIntent(); // 获得 Intent
AUrl = intent.getStringExtra("url"); // 获得 String 值
Log.e("接收url:",AUrl);
//AUrl = "http://www.tyyq.cn/xhsapp/download/a03790b7f27243eeada01537a2ce2f77.pdf";
String[] exts = AUrl.split("/");
pdfFileName = exts[exts.length-1];
Log.e("pdf文件名：",pdfFileName);
String pdfName = Environment.getExternalStorageDirectory() +
"/download";
File file = new File(pdfName, pdfFileName);
pdfView = (com.github.barteksc.pdfviewer.PDFView)findViewById(R.id.pdfView);
textView = (TextView) findViewById(R.id.textView);
if(file.exists()){
Log.e("Tip：","报告已存在！");
//文件已存在，则直接显示
uri = Uri.fromFile(file);
displayFromUri(uri);
textView.setVisibility(View.GONE);
pdfView.setVisibility(View.VISIBLE);
}
else{
isDown = true;
}
//Log.e("prefs字符串：",prefs.toString());
}
@Override
protected void onResume(){
super.onResume();
if(isDown)
{
try{
Log.e("Tip：","报告不存在,需要下载！");
DL_ID = pdfFileName;
//文件不存在需要先下载
downloadManager = (DownloadManager)getSystemService(DOWNLOAD_SERVICE);
prefs = PreferenceManager.getDefaultSharedPreferences(this);
StartReport();
}
catch (Exception ex)
{
Toast.makeText(this, ex.getMessage(), Toast.LENGTH_LONG).show();
}
}
}
@Override
protected void onPause() {
// TODO Auto-generated method stub
super.onPause();
//unregisterReceiver(receiver);
try {
unregisterReceiver(receiver);
} catch (IllegalArgumentException e) {
if (e.getMessage().contains("Receiver not registered")) {
// Ignore this exception. This is exactly what is desired
} else {
// unexpected, re-throw
throw e;
}
}
}
//下载报告启动函数
protected void StartReport() {
// TODO Auto-generated method stub
if(!prefs.contains(DL_ID) || true) { //
// String url = AUrl;
//Log.e("-----",AUrl);
//String[] exts = url.split("/");
//pdfFileName = "97b49c0822c14a01b3ebc273679bc6bf.pdf";
//exts[exts.length⑴];
String url = AUrl;//"http://www.tyyq.cn/RollImage/11.pdf";
Log.e("开始下载url：",AUrl);
//开始下载
Uri resource = Uri.parse(encodeGB(url));
DownloadManager.Request request = new DownloadManager.Request(resource);
request.setAllowedNetworkTypes(DownloadManager.Request.NETWORK_MOBILE | DownloadManager.Request.NETWORK_WIFI);
request.setAllowedOverRoaming(false);
//设置文件类型
MimeTypeMap mimeTypeMap = MimeTypeMap.getSingleton();
String mimeString = mimeTypeMap.getMimeTypeFromExtension(MimeTypeMap.getFileExtensionFromUrl(url));
request.setMimeType(mimeString);
//在通知栏中显示
//设置通知栏标题
request.setNotificationVisibility(DownloadManager.Request.VISIBILITY_VISIBLE);
request.setDescription("舆情报告正在下载");
//request.setShowRunningNotification(true);
request.setVisibleInDownloadsUi(true);
//sdcard的目录下的download文件夹
request.setDestinationInExternalPublicDir("/download/", pdfFileName);
request.setTitle("舆情报告");
long id = downloadManager.enqueue(request);
//保存id
prefs.edit().putLong(DL_ID, id).commit();
} else {
Log.e("提示：","下载已开始，检查状态");
//下载已开始，检查状态
queryDownloadStatus();
}
registerReceiver(receiver, new IntentFilter(DownloadManager.ACTION_DOWNLOAD_COMPLETE));
}
/**
* 如果服务器不支持中文路径的情况下需要转换url的编码。
* @param string
* @return
*/
public String encodeGB(String string)
{
//转换中文编码
String split[] = string.split("/");
for (int i = 1; i < split.length; i++) {
try {
split[i] = URLEncoder.encode(split[i], "GB2312");
} catch (UnsupportedEncodingException e) {
e.printStackTrace();
}
split[0] = split[0]+"/"+split[i];
}
split[0] = split[0].replaceAll("\\+", "%20");//处理空格
return split[0];
}
private BroadcastReceiver receiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
//这里可以获得下载的id，这样就能够知道哪一个文件下载完成了。适用与多个下载任务的监听
Log.v("intent", ""+intent.getLongExtra(DownloadManager.EXTRA_DOWNLOAD_ID, 0));
queryDownloadStatus();
}
};
private void queryDownloadStatus() {
DownloadManager.Query query = new DownloadManager.Query();
query.setFilterById(prefs.getLong(DL_ID, 0));
Cursor c = downloadManager.query(query);
if(c.moveToFirst()) {
int status = c.getInt(c.getColumnIndex(DownloadManager.COLUMN_STATUS));
switch(status) {
case DownloadManager.STATUS_PAUSED:
Log.v("down", "STATUS_PAUSED");
case DownloadManager.STATUS_PENDING:
Log.v("down", "STATUS_PENDING");
case DownloadManager.STATUS_RUNNING:
//正在下载，不做任何事情
Log.v("down", "STATUS_RUNNING");
break;
case DownloadManager.STATUS_SUCCESSFUL:
//完成
Log.v("down", "下载完成");
String pdfName = Environment.getExternalStorageDirectory() +
"/download";
File file = new File(pdfName, pdfFileName);
uri = Uri.fromFile(file);
Log.e("----",uri.toString());
displayFromUri(uri);
textView.setVisibility(View.GONE);
pdfView.setVisibility(View.VISIBLE);
break;
case DownloadManager.STATUS_FAILED:
//清除已下载的内容，重新下载
Log.v("down", "STATUS_FAILED");
downloadManager.remove(prefs.getLong(DL_ID, 0));
prefs.edit().clear().commit();
break;
}
}
}
/*pdf显示函数集合*/
private void displayFromUri(Uri urii) {
//pdfFileName = getFileName(urii);
pdfView.fromUri(urii)
.defaultPage(pageNumber)
.onPageChange(this)
.enableAnnotationRendering(true)
.onLoad(this)
.scrollHandle(new DefaultScrollHandle(this))
.load();
}
public void onResult(int resultCode, Intent intent) {
if (resultCode == RESULT_OK) {
uri = intent.getData();
displayFromUri(uri);
}
}
@Override
public void onPageChanged(int page, int pageCount) {
pageNumber = page;
setTitle(String.format("%s %s / %s", pdfFileName, page + 1, pageCount));
}
public String getFileName(Uri uri) {
String result = null;
if (uri.getScheme().equals("content")) {
Cursor cursor = getContentResolver().query(uri, null, null, null, null);
try {
if (cursor != null && cursor.moveToFirst()) {
result = cursor.getString(cursor.getColumnIndex(OpenableColumns.DISPLAY_NAME));
}
} finally {
if (cursor != null) {
cursor.close();
}
}
}
if (result == null) {
result = uri.getLastPathSegment();
}
return result;
}
@Override
public void loadComplete(int nbPages) {
PdfDocument.Meta meta = pdfView.getDocumentMeta();
printBookmarksTree(pdfView.getTableOfContents(), "-");
}
public void printBookmarksTree(List<PdfDocument.Bookmark> tree, String sep) {
for (PdfDocument.Bookmark b : tree) {
// Log.e(TAG, String.format("%s %s, p %d", sep, b.getTitle(), b.getPageIdx()));
if (b.hasChildren()) {
printBookmarksTree(b.getChildren(), sep + "-");
}
}
}
}
