工作流框架Activiti常用功能初探
栏目：综合技术时间：2016-07-13 08:26:49
Activiti项目是1项新的基于Apache许可的开源BPM平台，从基础开始构建，旨在提供支持新的BPMN 2.0标准，包括支持对象管理组（OMG），面对新技术的机遇，诸如互操作性和云架构，提供技术实现。
BPMN是由BPMI(The
Business Process Management Initiative)开发了1套标准叫业务流程建模符号(BPMN - Business Process Modeling Notation)BPMN定义了1个业务流程图（Business
Process Diagram），该业务流程图基于1个流程图（flowcharting），该流程图被设计用于创建业务流程操作的图形化模型。而1个业务流程模型（Business Process Model），指1个由的图形对象（graphical objects）组成的网状图，图形对象包括活动（acticities)和用于定义这些活动履行顺序的流程控制器（flow controls）。
以下是对Activiti框架几个经常使用功能的测试。
环境：mysql,eclipse,jdk1.7,activiti5.13
首先将Activiti相干的JAR包导入到项目中，由于JAR众多，这里就不罗列了。主要记录代码部份。
1.在eclipse中安装Activiti插件

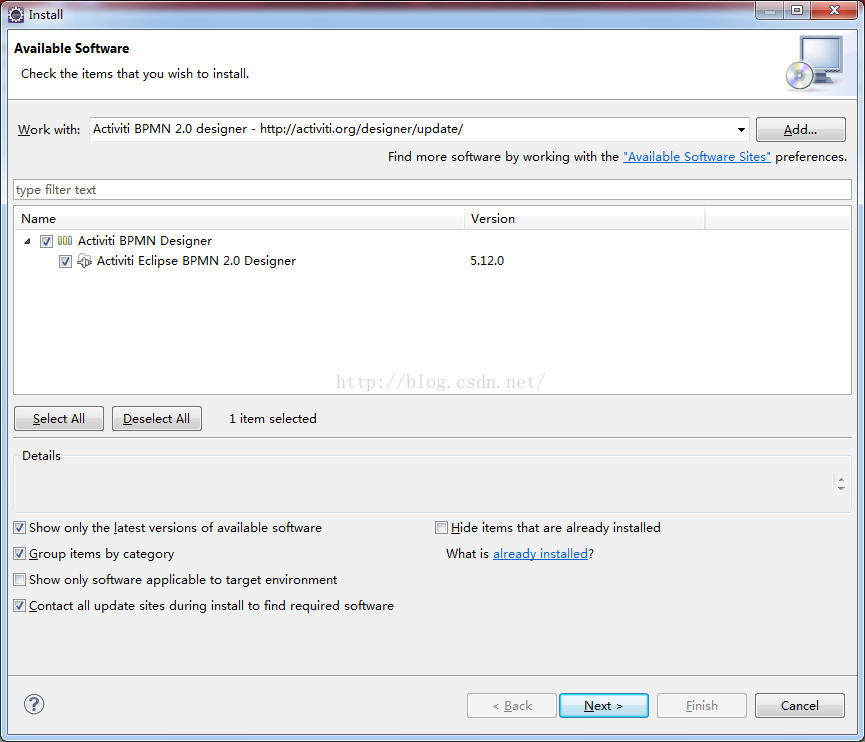

Help ->
InstallNew Software,在以下Install界面板中，点击Add按钮
然后在Name和Location中分别填入以下内容：
Name: Activiti BPMN 2.0 designer
Location: http://activiti.org/designer/update/
然后1直下1步、下1步安装，根据提示重启eclipse

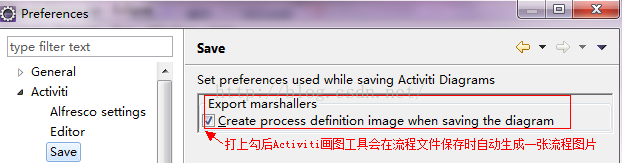

重启后，再打开菜单Windows->Preferences->Activiti->Save下流程流程图片的生成方式
2.配置log4j,让其打印出sql语句
在项目根目录下创建log4j.properties文件，在此文件中输入以下配置信息
### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.err
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n
### direct messages to file mylog.log ###
log4j.appender.file=org.apache.log4j.FileAppender
log4j.appender.file.File=c:\mylog.log
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n
### set log levels - for more verbose logging change 'info' to 'debug' ###
log4j.rootLogger=debug, stdout
3.activiti-context.xml配置activiti
在项目根目录创建activiti-context.xml文件，在其中配置以下内容
其中的activitiStudy为数据库名，须自己提早创建好。
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context⑵.5.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx⑶.0.xsd">
<!-- 配置流程引擎配置对象 -->
<bean id="processEngineConfiguration"
class="org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration">
<property name="jdbcDriver" value="com.mysql.jdbc.Driver" />
<property name="jdbcUrl" value="jdbc:mysql:///activitiStudy?useUnicode=true&characterEncoding=UTF⑻"/>
<property name="jdbcUsername" value="root" />
<property name="jdbcPassword" value="root" />
<property name="databaseSchemaUpdate" value="true" />
</bean>
<!-- 配置1个流程引擎工厂bean，用于创建流程引擎对象 -->
<bean id="processEngine" class="org.activiti.spring.ProcessEngineFactoryBean">
<!-- 通过set方法注入流程引擎配置对象 -->
<property name="processEngineConfiguration" ref="processEngineConfiguration" />
</bean>
</beans>
4.画流程图

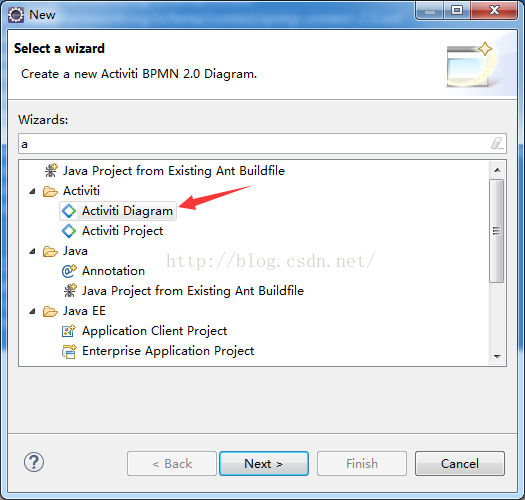

在项目中，在项目根目录下，点击new->other->选择Activiti下的Activiti Diagram新建1个流程图。

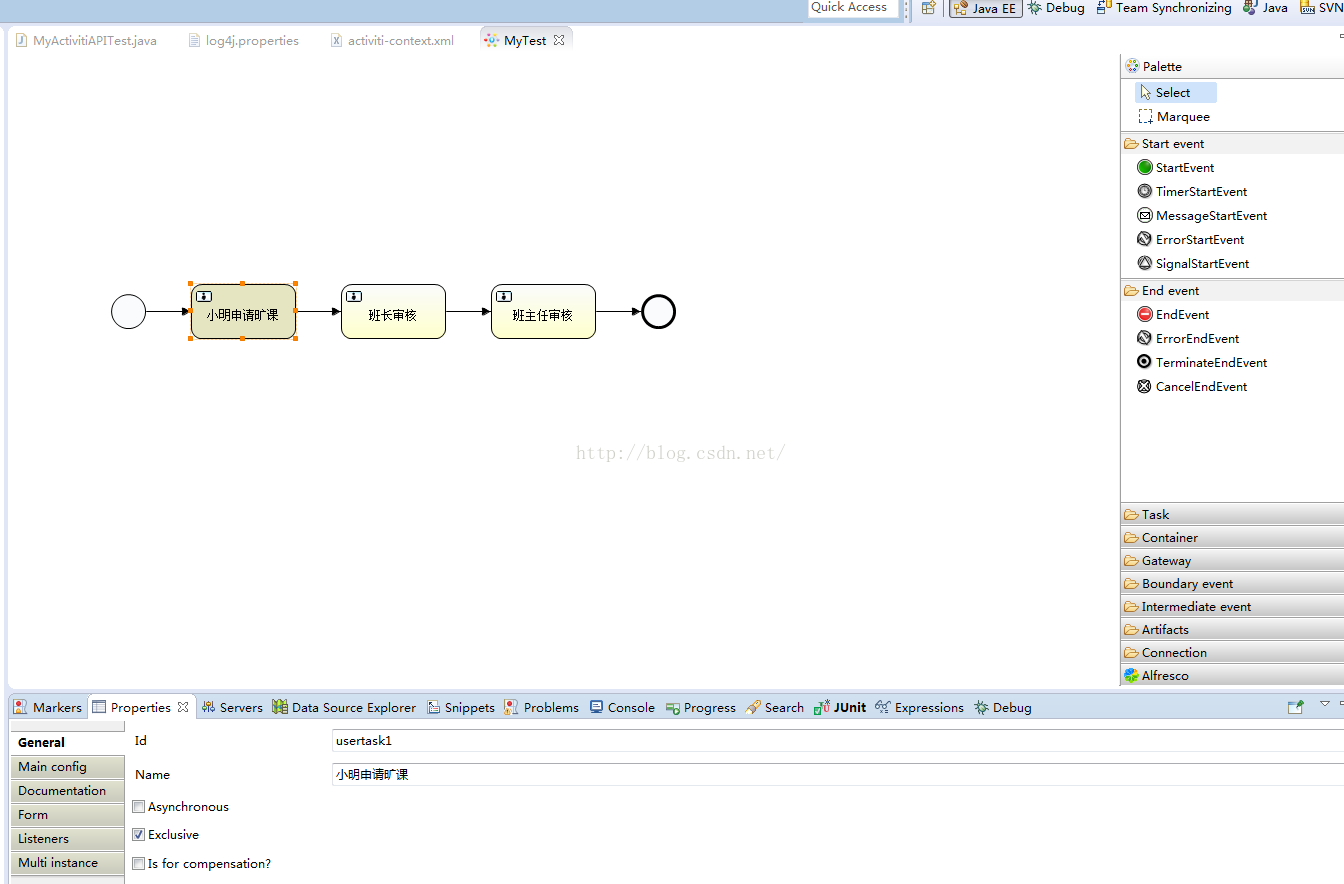

在其中画以下图示

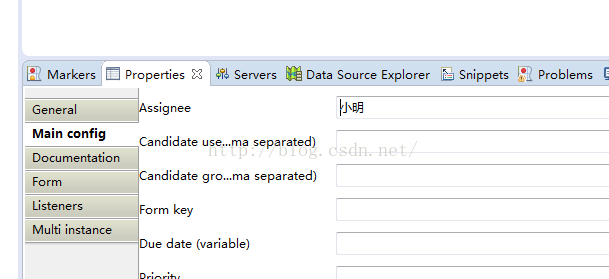

并设好相干属性
5.Activiti测试代码
import java.io.File;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import org.activiti.engine.ProcessEngine;
import org.activiti.engine.ProcessEngines;
import org.activiti.engine.repository.Deployment;
import org.activiti.engine.repository.DeploymentBuilder;
import org.activiti.engine.repository.DeploymentQuery;
import org.activiti.engine.repository.ProcessDefinition;
import org.activiti.engine.repository.ProcessDefinitionQuery;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.runtime.ProcessInstanceQuery;
import org.activiti.engine.task.Task;
import org.activiti.engine.task.TaskQuery;
import org.apache.commons.io.FileUtils;
import org.junit.Test;
/**
* 使用Activiti框架的API操作流程
*
* @author PuHaiyang
* @createTime 2016年6月28日 下午4:50:39
* @email 761396462@qq.com
* @function Activiti基本功能测试
*
*/
public class MyActivitiAPITest {
ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
@Test
public void deployActiviti() {
// 如果之前没有创建activiti相干的表，调用它会自动创建,由activiti-context.xml文件内容创建
DeploymentBuilder deploymentBuilder = processEngine.getRepositoryService().createDeployment();
deploymentBuilder.addClasspathResource("MyTest.bpmn");
deploymentBuilder.addClasspathResource("MyTest.png");
deploymentBuilder.name("i_am_name");
Deployment deploy = deploymentBuilder.deploy();
System.out.println(deploy.getId());
// 部署信息表 insert into ACT_RE_DEPLOYMENT(ID_, NAME_, CATEGORY_,
// DEPLOY_TIME_) values(?, ?, ?, ?)
// 2进制数据表,bpmn文件插入 insert into ACT_GE_BYTEARRAY(ID_, REV_, NAME_,
// BYTES_, DEPLOYMENT_ID_, GENERATED_) values (?, 1, ?, ?, ?, ?)
// 2进制数据表,png文件插入 insert into ACT_GE_BYTEARRAY(ID_, REV_, NAME_, BYTES_,
// DEPLOYMENT_ID_, GENERATED_) values (?, 1, ?, ?, ?, ?)
// 流程定义数据表 insert into ACT_RE_PROCDEF(ID_, REV_, CATEGORY_, NAME_, KEY_,
// VERSION_, DEPLOYMENT_ID_, RESOURCE_NAME_, DGRM_RESOURCE_NAME_,
// DESCRIPTION_, HAS_START_FORM_KEY_, SUSPENSION_STATE_) values (?, 1,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?)
}
/**
* 查询部署列表
*/
@Test
public void queryDeployment() {
DeploymentQuery deploymentQuery = processEngine.getRepositoryService().createDeploymentQuery();
List<Deployment> list = deploymentQuery.list();
for (Deployment deployment : list) {
String id = deployment.getId();
System.out.println(id);
}
}
/**
* 删除部署信息
*/
@Test
public void deleteDeployment() {
String deploymentId = "1";
// 第2个参数代表级联操作
processEngine.getRepositoryService().deleteDeployment(deploymentId, true);
// 删除所有相干的activiti信息
}
/**
* 查询1次部署对应的流程定义文件名称和对应的输入流（bpmn png）
*
* @throws Exception
*/
@Test
public void queryDeploymentResource() throws Exception {
String deploymentId = "101";
List<String> names = processEngine.getRepositoryService().getDeploymentResourceNames(deploymentId);
for (String name : names) {
System.out.println(name);
InputStream in = processEngine.getRepositoryService().getResourceAsStream(deploymentId, name);
// 将文件保存到本地磁盘
// FileUtils来自commons-io-xxx.jar
FileUtils.copyInputStreamToFile(in, new File("d:\\" + name));
in.close();
}
}
/**
* 取得流程表中流程图
*
* @throws Exception
*/
@Test
public void getProcessDiagream() throws Exception {
String processDefinitionId = "myProcess:1:104";
InputStream pngInputStream = processEngine.getRepositoryService().getProcessDiagram(processDefinitionId);
FileUtils.copyInputStreamToFile(pngInputStream, new File("d:\\my.png"));
}
/**
* 启动流程实例 <br>
* 方式1：根据流程定义的id启动 <br>
* 方式2：根据流程定义的key启动(自动选择最新版本的流程定义启动流程实例)
*/
@Test
public void startProcess() {
/*
* 方式1：根据流程定义的id启动 String processDefinitionId = "myProcess:1:104";
* ProcessInstance processInstance =
* processEngine.getRuntimeService().startProcessInstanceById
* (processDefinitionId ); System.out.println(processInstance.getId());
*/
// 方式2：根据流程定义的key启动(自动选择最新版本的流程定义启动流程实例)
String processDefinitionKey = "myProcess";
ProcessInstance processInstance = processEngine.getRuntimeService()
.startProcessInstanceByKey(processDefinitionKey);
System.out.println(processInstance.getId());
// 调用SQL语句以下
// 1 ACT_RU_EXECUTION 运行时流程履行实例表
// insert into ACT_RU_EXECUTION (ID_, REV_, PROC_INST_ID_,
// BUSINESS_KEY_, PROC_DEF_ID_, ACT_ID_, IS_ACTIVE_, IS_CONCURRENT_,
// IS_SCOPE_,IS_EVENT_SCOPE_, PARENT_ID_, SUPER_EXEC_,
// SUSPENSION_STATE_, CACHED_ENT_STATE_) values ( ?, 1, ?, ?, ?, ?, ?,
// ?, ?, ?, ?, ?, ?, ? )
// 2 ACT_HI_PROCINST 历史流程实例表
// insert into ACT_HI_PROCINST ( ID_, PROC_INST_ID_, BUSINESS_KEY_,
// PROC_DEF_ID_, START_TIME_, END_TIME_, DURATION_, START_USER_ID_,
// START_ACT_ID_, END_ACT_ID_, SUPER_PROCESS_INSTANCE_ID_,
// DELETE_REASON_ ) values ( ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 3 ACT_HI_ACTINST 历史节点表
// insert into ACT_HI_ACTINST ( ID_, PROC_DEF_ID_, PROC_INST_ID_,
// EXECUTION_ID_, ACT_ID_, TASK_ID_, CALL_PROC_INST_ID_, ACT_NAME_,
// ACT_TYPE_, ASSIGNEE_, START_TIME_, END_TIME_, DURATION_ ) values ( ?,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 4 ACT_HI_ACTINST 历史节点表
// insert into ACT_HI_ACTINST ( ID_, PROC_DEF_ID_, PROC_INST_ID_,
// EXECUTION_ID_, ACT_ID_, TASK_ID_, CALL_PROC_INST_ID_, ACT_NAME_,
// ACT_TYPE_, ASSIGNEE_, START_TIME_, END_TIME_, DURATION_ ) values ( ?,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 5 ACT_RU_TASK 运行时任务节点表
// insert into ACT_RU_TASK (ID_, REV_, NAME_, PARENT_TASK_ID_,
// DESCRIPTION_, PRIORITY_, CREATE_TIME_, OWNER_, ASSIGNEE_,
// DELEGATION_, EXECUTION_ID_, PROC_INST_ID_, PROC_DEF_ID_,
// TASK_DEF_KEY_, DUE_DATE_, SUSPENSION_STATE_) values (?, 1, ?, ?, ?,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 6 ACT_HI_TASKINST 历史任务实例表
// insert into ACT_HI_TASKINST ( ID_, PROC_DEF_ID_, PROC_INST_ID_,
// EXECUTION_ID_, NAME_, PARENT_TASK_ID_, DESCRIPTION_, OWNER_,
// ASSIGNEE_, START_TIME_, CLAIM_TIME_, END_TIME_, DURATION_,
// DELETE_REASON_, TASK_DEF_KEY_, FORM_KEY_, PRIORITY_, DUE_DATE_ )
// values ( ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 7 ACT_RU_IDENTITYLINK 运行时流程人员表，主要存储任务节点与参与者的相干信息
// insert into ACT_RU_IDENTITYLINK (ID_, REV_, TYPE_, USER_ID_,
// GROUP_ID_, TASK_ID_, PROC_INST_ID_, PROC_DEF_ID_) values (?, 1, ?, ?,
// ?, ?, ?, ?)
// 8 ACT_HI_IDENTITYLINK 历史流程人员表
// insert into ACT_HI_IDENTITYLINK (ID_, TYPE_, USER_ID_, GROUP_ID_,
// TASK_ID_, PROC_INST_ID_) values (?, ?, ?, ?, ?, ?)
}
/**
* 查询流程实例列表,查询act_ru_execution表
*/
@Test
public void queryRuntimeProcess() {
// 流程实例查询对象，查询act_ru_execution表
ProcessInstanceQuery query = processEngine.getRuntimeService().createProcessInstanceQuery();
query.processDefinitionKey("myProcess");
query.orderByProcessInstanceId().desc();
query.listPage(0, 2);
List<ProcessInstance> list = query.list();
for (ProcessInstance pi : list) {
System.out.println(pi.getId() + " " + pi.getActivityId());
}
}
/**
* 不通过<br>
* 删除流程实例
*/
@Test
public void deleteProcess() {
String processInstanceId = "201";
processEngine.getRuntimeService().deleteProcessInstance(processInstanceId, "不准逃课！");
// 履行删除部份SQL以下
// 1 ACT_RU_TASK 运行时任务节点表
// delete from ACT_RU_TASK where ID_ = ? and REV_ = ?
// 2 ACT_RU_IDENTITYLINK 运行时流程人员表，主要存储任务节点与参与者的相干信息
// delete from ACT_RU_IDENTITYLINK where ID_ = ?
// 3 ACT_RU_EXECUTION 运行时流程履行实例表
// delete from ACT_RU_EXECUTION where ID_ = ? and REV_ = ?
// 履行更新部份SQL以下
// 1 ACT_HI_PROCINST 历史流程实例表
// update ACT_HI_PROCINST set PROC_DEF_ID_ = ?, START_TIME_ = ?,
// END_TIME_ = ?, DURATION_ = ?, END_ACT_ID_ = ?, DELETE_REASON_ = ?
// where ID_ = ?
// 2 ACT_HI_ACTINST 历史节点表
// update ACT_HI_ACTINST set EXECUTION_ID_ = ?, ASSIGNEE_ = ?, END_TIME_
// = ?, DURATION_ = ? where ID_ = ?
// 3 ACT_HI_TASKINST 历史任务实例表
// update ACT_HI_TASKINST set EXECUTION_ID_ = ?, NAME_ = ?,
// PARENT_TASK_ID_ = ?, DESCRIPTION_ = ?, OWNER_ = ?, ASSIGNEE_ = ?,
// CLAIM_TIME_ = ?, END_TIME_ = ?, DURATION_ = ?, DELETE_REASON_ = ?,
// TASK_DEF_KEY_ = ?, FORM_KEY_ = ?, PRIORITY_ = ?, DUE_DATE_ = ? where
// ID_ = ?
}
/**
* 查询任务
*/
@Test
public void queryTask() {
// 任务查询对象,查询act_ru_task表
TaskQuery query = processEngine.getTaskService().createTaskQuery();
String assignee = "班主任";
query.taskAssignee(assignee);
query.orderByTaskCreateTime().desc();
List<Task> list = query.list();
for (Task task : list) {
System.out.println(task.getId());
}
// 履行sql以下
// 1 ACT_GE_PROPERTY 属性数据表存储全部流程引擎级别的数据,初始化表结构时，会默许插入3条记录，
// select * from ACT_GE_PROPERTY where NAME_ = ?
// 2 ACT_RU_TASK 运行时任务节点表
// select distinct RES.* from ACT_RU_TASK RES WHERE RES.ASSIGNEE_ = ?
// order by RES.CREATE_TIME_ desc LIMIT ? OFFSET ?
}
/**
* 处理任务
*/
@Test
public void completeTask() {
String taskId = "304";
processEngine.getTaskService().complete(taskId);
// 履行的主要SQL以下
// 1 ACT_GE_PROPERTY 属性数据表存储全部流程引擎级别的数据,初始化表结构时，会默许插入3条记录
// update ACT_GE_PROPERTY SET REV_ = ?, VALUE_ = ? where NAME_ = ? and
// REV_ = ?
// 2 ACT_HI_ACTINST 历史节点表
// insert into ACT_HI_ACTINST ( ID_, PROC_DEF_ID_, PROC_INST_ID_,
// EXECUTION_ID_, ACT_ID_, TASK_ID_, CALL_PROC_INST_ID_, ACT_NAME_,
// ACT_TYPE_, ASSIGNEE_, START_TIME_, END_TIME_, DURATION_ ) values ( ?,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 3 ACT_RU_TASK 运行时任务节点表
// insert into ACT_RU_TASK (ID_, REV_, NAME_, PARENT_TASK_ID_,
// DESCRIPTION_, PRIORITY_, CREATE_TIME_, OWNER_, ASSIGNEE_,
// DELEGATION_, EXECUTION_ID_, PROC_INST_ID_, PROC_DEF_ID_,
// TASK_DEF_KEY_, DUE_DATE_, SUSPENSION_STATE_) values (?, 1, ?, ?, ?,
// ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 4 ACT_HI_TASKINST 历史任务实例表
// insert into ACT_HI_TASKINST ( ID_, PROC_DEF_ID_, PROC_INST_ID_,
// EXECUTION_ID_, NAME_, PARENT_TASK_ID_, DESCRIPTION_, OWNER_,
// ASSIGNEE_, START_TIME_, CLAIM_TIME_, END_TIME_, DURATION_,
// DELETE_REASON_, TASK_DEF_KEY_, FORM_KEY_, PRIORITY_, DUE_DATE_ )
// values ( ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
// 5 ACT_RU_IDENTITYLINK 运行时流程人员表，主要存储任务节点与参与者的相干信息
// insert into ACT_RU_IDENTITYLINK (ID_, REV_, TYPE_, USER_ID_,
// GROUP_ID_, TASK_ID_, PROC_INST_ID_, PROC_DEF_ID_) values (?, 1, ?, ?,
// ?, ?, ?, ?)
// 6 ACT_HI_IDENTITYLINK 历史流程人员表
// insert into ACT_HI_IDENTITYLINK (ID_, TYPE_, USER_ID_, GROUP_ID_,
// TASK_ID_, PROC_INST_ID_) values (?, ?, ?, ?, ?, ?)
// 7 ACT_HI_TASKINST 历史任务实例表
// update ACT_HI_TASKINST set EXECUTION_ID_ = ?, NAME_ = ?,
// PARENT_TASK_ID_ = ?, DESCRIPTION_ = ?, OWNER_ = ?, ASSIGNEE_ = ?,
// CLAIM_TIME_ = ?, END_TIME_ = ?, DURATION_ = ?, DELETE_REASON_ = ?,
// TASK_DEF_KEY_ = ?, FORM_KEY_ = ?, PRIORITY_ = ?, DUE_DATE_ = ? where
// ID_ = ?
// 8 ACT_RU_EXECUTION 运行时流程履行实例表
// update ACT_RU_EXECUTION set REV_ = ?, PROC_DEF_ID_ = ?, ACT_ID_ = ?,
// IS_ACTIVE_ = ?, IS_CONCURRENT_ = ?, IS_SCOPE_ = ?, IS_EVENT_SCOPE_ =
// ?, PARENT_ID_ = ?, SUPER_EXEC_ = ?, SUSPENSION_STATE_ = ?,
// CACHED_ENT_STATE_ = ? where ID_ = ? and REV_ = ?
// 9 ACT_HI_ACTINST 历史节点表
// update ACT_HI_ACTINST set EXECUTION_ID_ = ?, ASSIGNEE_ = ?, END_TIME_
// = ?, DURATION_ = ? where ID_ = ?
// 10 ACT_RU_TASK 运行时任务节点表
// delete from ACT_RU_TASK where ID_ = ? and REV_ = ?
}
/**
* 直接将流程向下履行1步
*/
@Test
public void signal() {
String executionId = "301";// 流程实例id
processEngine.getRuntimeService().signal(executionId);
}
/**
* 查询最新版本的流程定义列表
*/
@Test
public void getLastTasks() {
ProcessDefinitionQuery query = processEngine.getRepositoryService().createProcessDefinitionQuery();
query.orderByProcessDefinitionVersion().asc();
List<ProcessDefinition> list = query.list();
Map<String, ProcessDefinition> map = new HashMap<String, ProcessDefinition>();
for (ProcessDefinition pd : list) {
map.put(pd.getKey(), pd);
}
ArrayList<ProcessDefinition> lastList = new ArrayList<>(map.values());
for (ProcessDefinition processDefinition : lastList) {
System.out.println(processDefinition.getName() + " " + processDefinition.getVersion());
}
}
}
------分隔线----------------------------
------分隔线----------------------------
