自定义View经常使用例子2（点击展开隐藏控件，9宫格图片控件）

今天博客的主要内容是两个常见的自定义控件，第1个是我们常常看到的点击隐藏点击查看控件，第2个控件是仿微信朋友圈的9宫格图片控件，相对上1篇的流布式布局来讲，这篇博客更容易，只不过触及更多的知识点而已

转载请注明原博客地址：http://blog.csdn.net/gdutxiaoxu/article/details/51772308

1.空话不多说了，先来看1下效果图

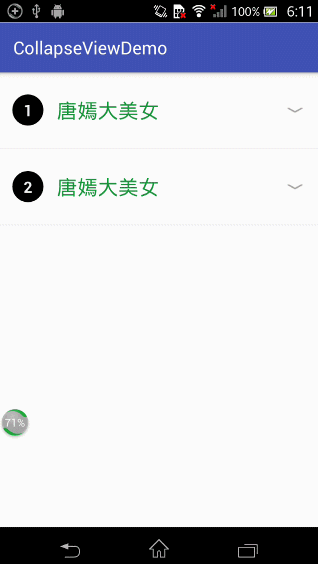

图1效果,点击隐藏，展开

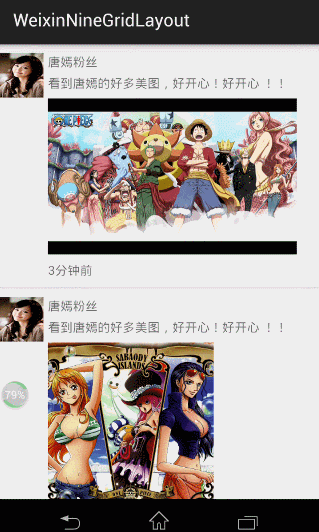

图2效果，类似于朋友圈9宫格图片

图2源码下载地址

图1源码下载地址：

图1源码

```

public class CollapseView extends LinearLayout {
    private long duration = 350;
    private Context mContext;
    private TextView mNumberTextView;
    private TextView mTitleTextView;
    private RelativeLayout mContentRelativeLayout;
    private RelativeLayout mTitleRelativeLayout;
    private ImageView mArrowImageView;
    int parentWidthMeasureSpec;
    int parentHeightMeasureSpec;
    private String TAG = "xujun";

    public CollapseView(Context context) {
        this(context, null);
    }

    public CollapseView(Context context, AttributeSet attrs) {
        super(context, attrs);
        mContext = context;
        LayoutInflater.from(mContext).inflate(R.layout.collapse_layout, this);
        initView();
    }


    private void initView() {
        mNumberTextView = (TextView) findViewById(R.id.numberTextView);
        mTitleTextView = (TextView) findViewById(R.id.titleTextView);
        mTitleRelativeLayout = (RelativeLayout) findViewById(R.id.titleRelativeLayout);
        mContentRelativeLayout = (RelativeLayout) findViewById(R.id.contentRelativeLayout);
        mArrowImageView = (ImageView) findViewById(R.id.arrowImageView);
        mTitleRelativeLayout.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                rotateArrow();
            }
        });
        mNumberTextView.setBackgroundResource(R.drawable.circle);
        Drawable circleShape = createCircleShape(Color.BLACK);
        mNumberTextView.setBackgroundDrawable(circleShape);
        collapse(mContentRelativeLayout);
    }

    public void setNumber(String number) {
        if (!TextUtils.isEmpty(number)) {
            mNumberTextView.setText(number);
        }
    }

    public void setTitle(String title) {
        if (!TextUtils.isEmpty(title)) {
            mTitleTextView.setText(title);
        }
    }

    public void setContent(int resID) {
        View view = LayoutInflater.from(mContext).inflate(resID, null);
        RelativeLayout.LayoutParams layoutParams =
                new RelativeLayout.LayoutParams(LayoutParams.MATCH_PARENT, RelativeLayout
                        .LayoutParams.WRAP_CONTENT);
        view.setLayoutParams(layoutParams);
        mContentRelativeLayout.addView(view);
    }

    /**
     * 若使用这个方法，强迫layoutParams must be RelativeLayout.LayoutParams，避免在某些情况下出现毛病
     *
     * @param view
     */
    public void setContent(View view) {
        ViewGroup.LayoutParams layoutParams = view.getLayoutParams();

        if (layoutParams == null) {
            layoutParams = new RelativeLayout.LayoutParams(
                    LayoutParams.MATCH_PARENT, RelativeLayout.LayoutParams.WRAP_CONTENT);
        }

        if (!(layoutParams instanceof RelativeLayout.LayoutParams)) {
            throw new IllegalStateException("layoutParams must be RelativeLayout.LayoutParams ");
        }

        view.setLayoutParams(layoutParams);
        mContentRelativeLayout.addView(view);
    }

    public void rotateArrow() {
        int degree = 0;
        if (mArrowImageView.getTag() == null || mArrowImageView.getTag().equals(true)) {
            mArrowImageView.setTag(false);
            degree = ⑴80;
            expand(mContentRelativeLayout);
        } else {
            degree = 0;
            mArrowImageView.setTag(true);
            collapse(mContentRelativeLayout);
        }
        mArrowImageView.animate().setDuration(duration).rotation(degree);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        parentWidthMeasureSpec = widthMeasureSpec;
        parentHeightMeasureSpec = heightMeasureSpec;
    }

    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b) {
        super.onLayout(changed, l, t, r, b);
    }




    // 展开
    private void expand(final View view) {

        view.setVisibility(View.VISIBLE);
        int childWidthMode = getMode(parentWidthMeasureSpec);
        int childHeightMode = getMode(parentHeightMeasureSpec);
        view.measure(childWidthMode, childHeightMode);
        final int measuredWidth = view.getMeasuredWidth();
        final int measuredHeight = view.getMeasuredHeight();

        final ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, 1);
        valueAnimator.setDuration(duration);
        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                float precent = animation.getAnimatedFraction();
                int width = (int) (measuredWidth * precent);
                setWidth(view, width);
                if (precent == 1) {
                    valueAnimator.removeAllUpdateListeners();
                }
            }
        });
        valueAnimator.start();

    }

    private int getMode(int parentMeasureSpec) {

        if (parentMeasureSpec == MeasureSpec.EXACTLY) {
            return MeasureSpec.AT_MOST;
        } else if (parentMeasureSpec == MeasureSpec.AT_MOST) {
            return MeasureSpec.AT_MOST;
        } else {
            return parentMeasureSpec;
        }
    }

    private void setWidth(View view, int width) {
        ViewGroup.LayoutParams layoutParams = view.getLayoutParams();
        layoutParams.width = width;
        view.setLayoutParams(layoutParams);
        view.requestLayout();
    }

    // 折叠
    private void collapse(final View view) {
        final int measuredHeight = view.getMeasuredHeight();
        final ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, 1);
        valueAnimator.setDuration(duration);
        final int viewMeasuredWidth = view.getMeasuredWidth();

        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {

            @Override
            public void onAnimationUpdate(ValueAnimator animation) {

                float precent = animation.getAnimatedFraction();
                Log.i(TAG, "onAnimationUpdate: precent" + precent);
                int width = (int) (viewMeasuredWidth - viewMeasuredWidth * precent);
                setWidth(view, width);
//                动画履行结束的时候，设置View为View.GONE，同时移除监听器
                if (precent == 1) {
                    view.setVisibility(View.GONE);
                    valueAnimator.removeAllUpdateListeners();
                }
            }
        });
        valueAnimator.start();
    }
}

```

思路解析

如图所示，图逐一4个部份组成，数字，标题，箭头，图片，点击标题所在的那1行，图片回相应地隐藏或显示。
数字，标题，箭头都在同1个相对布局里面，图片在单独的1个相对布局中，整体由 LinearLayout构成，布局文件以下

```

<?xml version="1.0" encoding="utf⑻"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
              android:layout_width="match_parent"
              android:layout_height="wrap_content"
              android:background="#ffffff"
              android:orientation="vertical">
    <RelativeLayout
        android:id="@+id/titleRelativeLayout"
        android:padding="30px"
        android:layout_width="match_parent"
        android:layout_height="170px"
        android:clickable="true">

        <TextView
            android:id="@+id/numberTextView"
            android:layout_width="70px"
            android:layout_height="70px"
            android:gravity="center"
            android:layout_centerVertical="true"

            android:clickable="false"
            android:text="1"
            android:textStyle="bold"
            android:textColor="#EBEFEC"
            android:textSize="35px" />

        <TextView
            android:id="@+id/titleTextView"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_centerVertical="true"
            android:layout_toRightOf="@id/numberTextView"
            android:layout_marginLeft="30px"
            android:clickable="false"
            android:textColor="#1d953f"
            android:textSize="46px" />


        <ImageView
            android:id="@+id/arrowImageView"
            android:layout_width="48px"
            android:layout_height="27px"
            android:layout_alignParentRight="true"
            android:layout_centerVertical="true"
            android:background="@mipmap/arrow_down"
            android:clickable="false"
            android:scaleType="fitCenter" />
    </RelativeLayout>

    <View
        android:layout_width="match_parent"
        android:layout_height="2px"
        android:layout_below="@id/titleRelativeLayout"
        android:background="#E7E7EF"
        android:clickable="false"
        />

    <RelativeLayout
        android:id="@+id/contentRelativeLayout"
        android:visibility="gone"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
    </RelativeLayout>

</LinearLayout>

```

把contentRelativeLayout的visibility设置为android:visibility="gone"，是由于1开始不用加载这个相对局部，这样它不会占用位置

3. 在代码中初始化布局，并给 mTitleRelativeLayout设置点击事件。

 mTitleRelativeLayout.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                    rotateArrow();
                }
            });

我们来看 rotateArrow()里面我们做了甚么，其实就是根据相应的动画履行箭头旋转的动作和更改 contentRelativeLayout的高度核心代码以下：

  int degree = 0;
  if (mArrowImageView.getTag() == null || mArrowImageView.getTag().equals(true)) {
        mArrowImageView.setTag(false);
        degree = ⑴80;
        expand(mContentRelativeLayout);
   } else {
        degree = 0;
        mArrowImageView.setTag(true);
        collapse(mContentRelativeLayout);
   }
   mArrowImageView.animate().setDuration(duration).rotation(degree);

我们在来看1下在expand我们做了甚么，其实就是给contentRelativeLayout履行1个动画，在动画的履行进程中不断改变contentRelativeLayout的高度，注意在履行动画之前，我们需要小调用view.measure(childWidthMode, childHeightMode);方法，这样我们可能获得到高度

    view.setVisibility(View.VISIBLE);
    int childWidthMode = getMode(parentWidthMeasureSpec);
    int childHeightMode = getMode(parentHeightMeasureSpec);
    view.measure(childWidthMode, childHeightMode);
    final int measuredWidth = view.getMeasuredWidth();
    final int measuredHeight = view.getMeasuredHeight();

    final ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, 1);
    valueAnimator.setDuration(duration);
    valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            float precent = animation.getAnimatedFraction();
            int width = (int) (measuredWidth * precent);
            setWidth(view, width);
            // 动画履行结束的时候，同时移除监听器
            if (precent == 1) {
                valueAnimator.removeAllUpdateListeners();
            }
        }
    });
    valueAnimator.start();

反之，隐藏也是履行1个动画，不断改变高度，只不太高度是愈来愈小，直至为0为止

图1的源码分析到此为止，源码下载地址：https://github.com/gdutxiaoxu/CustomViewDemo2.git

图2源码分析

源码下载地址

1.思路解析，

1）首先我们自己自定义1个CustomImageView,在这个类里面我们给其提供了1个方法

public void setImageUrl(String url)；

在这个方法里面其实我们做的工作就是Picasso框架加载图片，即图片交给CustomImageView自己去加载，更符合面向对象的4位

    if (!TextUtils.isEmpty(url)) {
        this.url = url;
        if (isAttachedToWindow) {
            Picasso.with(getContext()).load(url).placeholder(new ColorDrawable(Color.parseColor("#f5f5f5"))).into(this);
        }
    }

2）接着我们自定义1个NineGridlayout，继承ViewGroup，在这个类里面我们主要做的工作就是添加孩子，并肯定每一个孩子的位置

首先我们在构造方法里面初始化我们控件需要的宽度

public NineGridlayout(Context context, AttributeSet attrs) {
    super(context, attrs);
    ScreenTools screenTools=ScreenTools.instance(getContext());
  //        初始总宽度
    totalWidth=screenTools.getScreenWidth()-screenTools.dip2px(80);
}

接着我们提供了setImagesData（）方法，基本所有的逻辑都放在这里

首先我们先根据孩子的数量肯定有多少行多少列
接着判断是不是需要复用，不需要复用的话，直接添加孩子，需要复用的话，判断需要新设置的孩子的数量是不是大于缓存的孩子的数量，小于的话，继续添加孩子，知道孩子的数量到达我们需要的孩子的数量为止，小于的话，移除过剩的缓存的孩子的数量
接着再摆放每一个孩子的位置，并设置它的Url

注意我们这里之所以需要判断是不是需要复用，是由于ListView或RecyclerView的缓存机制，若每次setImagesData（）的时候直接添加，会致使添加多个孩子，若直接移除所有孩子的话，性能相对来讲较差，所以我们进行缓存，到此源码分析位置。

代码以下

/**
 * 博客地址：http://blog.csdn.net/gdutxiaoxu
 * @author xujun
 * @time 2015/11/27 16:13.
 */
public class NineGridlayout extends ViewGroup {

    /**
     * 图片之间的间隔
     */
    private int gap = 5;
    private int columns;//列数
    private int rows;//行数
    private List listData;
    private int totalWidth;

    private final int MAX_COLUMNS=3;
    private final int MAX_ROW3=3;

    public NineGridlayout(Context context) {
        this(context,null);
    }

    public NineGridlayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        ScreenTools screenTools=ScreenTools.instance(getContext());
//        初始总宽度
        totalWidth=screenTools.getScreenWidth()-screenTools.dip2px(80);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {

        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }

    @Override
    protected void onLayout(boolean changed, int l, int t, int r, int b) {

    }
    private void layoutChildrenView(){
        int childrenCount = listData.size();

        int singleWidth = (totalWidth - gap * (3 - 1)) / 3;
        int singleHeight = singleWidth;


        /**
         * 根据子view数量肯定高度,这里直接调用setLayoutParams设置NineGridlayout的高度
         *
         */

        LayoutParams params = getLayoutParams();
        int marginHeight = getPaddingTop() + getPaddingTop();
        params.height = singleHeight * rows + gap * (rows - 1)+marginHeight;
        setLayoutParams(params);

//摆放孩子的位置
        for (int i = 0; i < childrenCount; i++) {
            CustomImageView childrenView = (CustomImageView) getChildAt(i);
            childrenView.setImageUrl(((Image) listData.get(i)).getUrl());
            int[] position = findPosition(i);

//            加上getPaddingLeft（），为了支持Padding属性
            int left = (singleWidth + gap) * position[1]+getPaddingLeft();
            int top = (singleHeight + gap) * position[0]+getPaddingTop();
            int right = left + singleWidth;
            int bottom = top + singleHeight;

            childrenView.layout(left, top, right, bottom);
        }

    }


    private int[] findPosition(int childNum) {
        int[] position = new int[2];
        for (int i = 0; i < rows; i++) {
            for (int j = 0; j < columns; j++) {
                if ((i * columns + j) == childNum) {
                    position[0] = i;//行
                    position[1] = j;//列
                    break;
                }
            }
        }
        return position;
    }

    public int getGap() {
        return gap;
    }

    public void setGap(int gap) {
        this.gap = gap;
    }


    public void setImagesData(List<Image> lists) {
        if (lists == null || lists.isEmpty()) {
            return;
        }
        //初始化布局
        generateChildrenLayout(lists.size());
        //这里做1个重用view的处理
        if (listData == null) {
            int i = 0;
            while (i < lists.size()) {
                CustomImageView iv = generateImageView();
                addView(iv,generateDefaultLayoutParams());
                i++;
            }
        } else {
            int oldViewCount = listData.size();
            int newViewCount = lists.size();
            if (oldViewCount > newViewCount) {
                removeViews(newViewCount - 1, oldViewCount - newViewCount);
            } else if (oldViewCount < newViewCount) {
                for (int i = 0; i < newViewCount - oldViewCount; i++) {
                    CustomImageView iv = generateImageView();
                    addView(iv,generateDefaultLayoutParams());
                }
            }
        }
        listData = lists;
        layoutChildrenView();
    }


    /**
     * 根据图片个数肯定行列数量
     * 对应关系以下
     * num  row column
     * 1       1    1
     * 2       1    2
     * 3       1    3
     * 4       2    2
     * 5       2    3
     * 6       2    3
     * 7       3    3
     * 8       3    3
     * 9       3    3
     *
     * @param length
     */
    private void generateChildrenLayout(int length) {
        if (length <= MAX_COLUMNS) {
            rows = 1;
            columns = length;
        } else if (length <= MAX_COLUMNS*2) {
            rows = 2;
            columns = MAX_COLUMNS;
            if (length == MAX_COLUMNS+1) {
                columns = 2;
            }
        } else {
            rows = 3;
            columns = MAX_COLUMNS;
        }
    }

    private CustomImageView generateImageView() {
        CustomImageView iv = new CustomImageView(getContext());
        iv.setScaleType(ImageView.ScaleType.CENTER_CROP);
        iv.setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {

            }
        });
        iv.setBackgroundColor(Color.parseColor("#f5f5f5"));
        return iv;
    }


}

图2源码下载地址

图1源码下载地址：

------分隔线----------------------------

上一篇 底层并发 API

下一篇 JAVA之旅（二十二）——Map概述,子类对象特点，共性方法，keySet，entrySet，Map小练习

------分隔线----------------------------
