基于全志a31s的camrea驱动调试（gc2145型号）

栏目：综合技术时间：2015-02-06 09:00:45

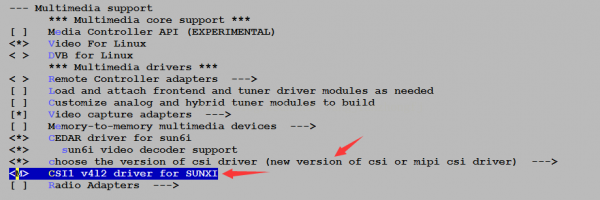

运行命令make ARCH = menuconfig进入device drivers--->Multimedia support--->配置以下

把GC2145的驱动文件gc2145.c放在licheelinux⑶.3driversmediavideosunxi-vfedevice下并在其目录下的Makefike文件添加

obj-$(CONFIG_CSI_VFE) += cci.o

......

obj-m += gc2145.o

修改lichee oolspackchipssun6iconfigsandroidmars-ml220sys_config.fex文件中内容以下

[vip1_para]

vip_used = 1

vip_dev0_mname = "gc2145"

vip_dev0_twi_id = 0

vip_dev0_twi_addr = 0x78

vip_dev0_isp_used = 0

vip_dev0_fmt = 0

vip_dev0_stby_mode = 0

vip_dev0_vflip = 0

vip_dev0_hflip = 0

vip_dev0_iovdd = "axp22_dldo2"

vip_dev0_iovdd_vol = 2800000

vip_dev0_avdd = "axp22_ldoio0"

vip_dev0_avdd_vol = 2800000

vip_dev0_dvdd = "axp22_eldo2"

vip_dev0_dvdd_vol = 1800000

vip_dev0_afvdd = "axp22_dldo2"

vip_dev0_afvdd_vol = 2800000

vip_dev0_power_en =

vip_dev0_reset = port:PH26<1><default><default><0>

vip_dev0_pwdn = port:PH27<1><default><default><1>

vip_dev0_flash_en =

vip_dev0_flash_mode =

vip_dev0_af_pwdn =

vip_dev0_act_used = 0

vip_dev0_act_name = "ad5820_act"

vip_dev0_act_slave = 0x18

[camera_list_para]

camera_list_para_used = 1

......

gc2145 = 1

修改androiddevicesoftwinnermars-ml220init.sun6i.rc文件中以下内容

#csi module

insmod /system/vendor/modules/videobuf-core.ko

insmod /system/vendor/modules/videobuf-dma-contig.ko

#insmod /system/vendor/modules/uvcvideo.ko

insmod /system/vendor/modules/cam_detect.ko

#insmod /system/vendor/modules/actuator.ko

#insmod /system/vendor/modules/ad5820_act.ko

insmod /system/vendor/modules/cci.ko

insmod /system/vendor/modules/vfe_os.ko

insmod /system/vendor/modules/vfe_subdev.ko

#insmod /system/vendor/modules/ov5647.ko

insmod /system/vendor/modules/gc2145.ko #注意：gc2145.ko1定要在vfe_v4l2.ko前注册，不然会提示连接不到相机

insmod /system/vendor/modules/vfe_v4l2.ko

修改androiddevicesoftwinnermars-ml220configs文件中内容以下

number_of_camera = 1

camera_id = 0

camera_facing = 0

use_builtin_isp = 0

camera_orientation = 0

device_id = 0

在licheelinux⑶.3driversmediavideosunxi-vfeconfig.c文件中添加

struct camera_info camera_info_list[] =

{

{"gc2145",0,0,0,0},

{"gc2235",0,0,1,1},

{"ov5647",0,0,1,1},

{"gc2035",0,0,0,0},

{"gc0308",0,0,0,0},

{"gc0307",0,0,0,0},

{"hi257",0,0,0,0},

};

在licheelinux⑶.3driversmediavideosunxi-vfecamera_detectorcamera_list.c文件中添加

#define __GC2145__

static void camera_pwr_on_gc2145(__u32 list_index, __camera_info_t *camera_info)

{

camera_gpio_set_status(camera_info->stby_pin, 1);

camera_gpio_set_status(camera_info->reset_pin, 1);

//power supply

camera_gpio_write(camera_info->stby_pin, camera_list[list_index].CSI_STBY_ON);

camera_gpio_write(camera_info->reset_pin, camera_list[list_index].CSI_RST_ON);

msleep(1);

clk_enable(camera_info->module_clk);

msleep(10);

camera_gpio_write(camera_info->pwr_pin, camera_list[list_index].CSI_PWR_ON);

msleep(10);

if(camera_info->dvdd)

{

if(camera_info->dvdd_vol > 0)

{

regulator_set_voltage(camera_info->dvdd,camera_info->dvdd_vol,camera_info->dvdd_vol);

}

else

{

list_print("dvdd_vol is NULL!! ");

}

regulator_enable(camera_info->dvdd);

msleep(10);

}

if(camera_info->avdd)

{

if(camera_info->dvdd_vol > 0)

{

regulator_set_voltage(camera_info->avdd,camera_info->avdd_vol,camera_info->avdd_vol);

}

else

{

list_print("dvdd_vol is NULL!! ");

}

regulator_enable(camera_info->avdd);

msleep(10);

}

if(camera_info->iovdd)

{

if(camera_info->dvdd_vol > 0)

{

regulator_set_voltage(camera_info->iovdd,camera_info->iovdd_vol,camera_info->iovdd_vol);

}

else

{

list_print("dvdd_vol is NULL!! ");

}

regulator_enable(camera_info->iovdd);

msleep(10);

}

//standby off io

camera_gpio_write(camera_info->stby_pin, camera_list[list_index].CSI_STBY_OFF);

msleep(10);

camera_gpio_write(camera_info->reset_pin, camera_list[list_index].CSI_RST_OFF);

msleep(10);

camera_gpio_write(camera_info->reset_pin, camera_list[list_index].CSI_RST_ON);

msleep(10);

camera_gpio_write(camera_info->reset_pin, camera_list[list_index].CSI_RST_OFF);

msleep(10);

}

static void camera_pwr_off_gc2145(__u32 list_index, __camera_info_t *camera_info)

{

camera_gpio_write(camera_info->stby_pin, camera_list[list_index].CSI_STBY_ON);

msleep(10);

//reset on io

camera_gpio_write(camera_info->reset_pin, camera_list[list_index].CSI_RST_ON);

msleep(10);

//inactive mclk after power off

//power supply off

if(camera_info->iovdd) {

regulator_disable(camera_info->iovdd);

}

if(camera_info->avdd) {

regulator_disable(camera_info->avdd);

}

if(camera_info->dvdd) {

regulator_disable(camera_info->dvdd);

}

camera_gpio_write(camera_info->pwr_pin, camera_list[list_index].CSI_PWR_OFF);

msleep(10);

//standby of io

clk_disable(camera_info->module_clk);

//set the io to hi-z

camera_gpio_set_status(camera_info->reset_pin, 0);//set the gpio to input

// camera_gpio_set_status(camera_info->stby_pin, 0);//set the gpio to input

}

static __s32 camera_detect_gc2145(__u32 list_index, struct i2c_adapter *i2c_adap)

{

char reg_num[1], value[1];

__s32 ret = 0;

__u32 i2c_addr = camera_list[list_index].i2c_addr;

__u32 addr_step = camera_list[list_index].REG_ADDR_STEP;

__u32 data_step = camera_list[list_index].REG_DATA_STEP;

list_print("try to detect gc2145 ... ");

reg_num[0] = 0xf0;

ret = camera_i2c_read(i2c_adap, reg_num, value, i2c_addr, addr_step, data_step);

if (ret < 0) {

return ret;

}

if(value[0] !=0x21)

return -ENODEV;

reg_num[0] = 0xf1;

ret = camera_i2c_read(i2c_adap, reg_num, value, i2c_addr, addr_step, data_step);

if (ret < 0) {

return ret;

}

if(value[0] !=0x55)

return -ENODEV;

list_print("detect gc2145 success!! ");

return 0;

}

__camera_list_t camera_list[MAX_CAMERA_LIST_ITEM] = {

... ...

CAMERA_LIST_ITEM_INIT(gc2145, 1, 1, 0x78, 1, 0, 0, 1, 1, 0),

};

修改licheelinux⑶.3driversmediavideosunxi-vfecamera_detectorcamera_list.h文件中内容以下

#define MAX_CAMERA_LIST_ITEM 26 //在原来的基础上加1
