linux 6.4 平台下 Oracle 12c 单实例 安装手册

栏目:数据库应用时间:2014-12-15 09:18:49



1.准备工作



1.1 安装需要的RPM 包



binutils⑵.20.51.0.2⑸.11.el6 (x86_64)

glibc⑵.12⑴.7.el6 (x86_64)

libgcc⑷.4.4⑴3.el6 (x86_64)

libstdc++⑷.4.4⑴3.el6 (x86_64)

libaio-0.3.107⑴0.el6 (x86_64)

libXext⑴.1 (x86_64)

libXtst⑴.0.99.2 (x86_64)

libX11⑴.3 (x86_64)

libXau⑴.0.5 (x86_64)

libxcb⑴.5 (x86_64)

libXi⑴.3 (x86_64)

make⑶.81⑴9.el6

sysstat⑼.0.4⑴1.el6 (x86_64)





compat-libcap1⑴.10⑴ (x86_64)

compat-libstdc++⑶3⑶.2.3⑹9.el6 (x86_64)

gcc⑷.4.4⑴3.el6 (x86_64)

gcc-c++⑷.4.4⑴3.el6 (x86_64)

glibc-devel⑵.12⑴.7.el6 (x86_64)

ksh  <== 任何版本的 ksh 都可以。

libstdc++-devel⑷.4.4⑴3.el6 (x86_64)

libaio-devel-0.3.107⑴0.el6 (x86_64)



compat-libstdc++⑶3⑶.2.3⑹9.el6 (i686)

glibc⑵.12⑴.7.el6 (i686)

glibc-devel⑵.12⑴.7.el6 (i686)

libgcc⑷.4.4⑴3.el6 (i686)

libstdc++⑷.4.4⑴3.el6 (i686)

libstdc++-devel⑷.4.4⑴3.el6 (i686)

libaio-0.3.107⑴0.el6 (i686)

libaio-devel-0.3.107⑴0.el6 (i686)

libXext⑴.1 (i686)

libXtst⑴.0.99.2 (i686)

libX11⑴.3 (i686)

libXau⑴.0.5 (i686)

libxcb⑴.5 (i686)

libXi⑴.3 (i686)





这里建议配置好YUM,用yum 来1次安装。





1.2 修改内核参数/etc/sysctl.conf



在sysctl.conf 中加入以下内容:



kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
fs.file-max = 6815744
fs.aio-max-nr = 1048576

net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576

kernel.panic_on_oops = 30



以下2个参数直接使用默许值便可:

kernel.shmmax = 68719476736

kernel.shmall = 4294967296



用root用户履行sysctl -p 使修改生效。



1.3 设置 Oracle 用户的Shell 限制

在 /etc/security/limits.conf中添加以下内容:

oracle  soft    nproc   2047

oracle  hard   nproc  16384

oracle  soft    nofile   1024

oracle  hard   nofile   65536

oracle  soft    stack   10240

oracle  hard   stack   10240



注:limits.conf 文件产生更改时,这些更改立即生效。但是,如果 Oracle 用户已登录,则这些更改将在注销这些用户并重新登录以后生效。必须先完成此操作,然后再使用这些帐户进行安装。



1.4 设置PAM

确保加载了最新版本的 PAM,然后在 /etc/pam.d/login 文件中添加或编辑以下行:



session required pam_limits.so



1.5 设置ulimit



验证当前 ulimit,如果需要则增大。可以采取多种方式完成此操作,推荐方法是在 /etc/profile 中添加以下行:

if [ $USER = "oracle" ]; then
    if [ $SHELL = "/bin/ksh" ]; then
       ulimit -u 16384
       ulimit -n 65536
    else
       ulimit -u 16384 -n 65536
    fi
fi





1.6 创建Oracle用户和组

groupadd oinstall

groupadd dba

groupadd oper

useradd -g oinstall -G dba oracle

passwd oracle



1.7 创建目录

mkdir -p /u01/app/oracle/product/12.1.0/db_1
chown -R oracle.oinstall /u01
chmod -R 777 /u01



1.8 设置oracle用户的环境变量



修改/home/oracle/.bash_profile 文件添加以下内容:





TMP=/tmp; export TMP

TMPDIR=$TMP; export TMPDIR

ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE

ORACLE_HOME=$ORACLE_BASE/product/12.1.0/db_1; export ORACLE_HOME

ORACLE_SID=dave; export ORACLE_SID

SHLIB_PATH=$LD_LIBRARY_PATH;export SHLIB_PATH
NLS_LANG=American_America.zhs16gbk;export NLS_LANG
ORA_NLS10=$ORACLE_HOME/nls/data;export ORA_NLS10

TNS_ADMIN=$ORACLE_HOME/network/admin;export TNS_ADMIN

ORACLE_TERM=xterm; export ORACLE_TERM

PATH=/usr/sbin:$PATH; export PATH

PATH=$ORACLE_HOME/bin:$PATH; export PATH

LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH

CLASSPATH=$ORACLE_HOME/jre:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib;export CLASSPATH



Source 参数使生效:

[oracle@Ora12c ~]$ source ~/.bash_profile





2.开始安装

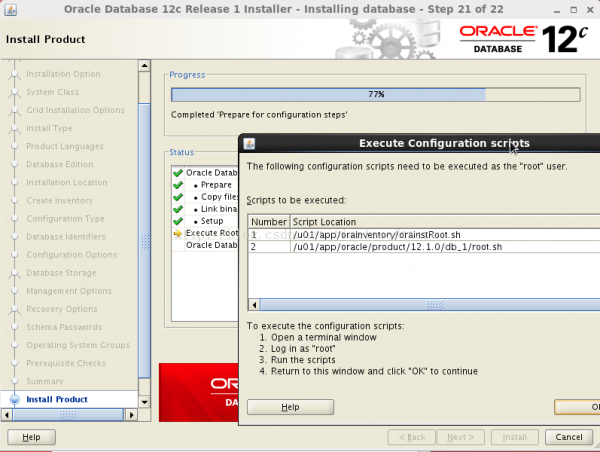

运行runinstaller。



































[root@Ora12c database]#/u01/app/oraInventory/orainstRoot.sh

Changing permissions of /u01/app/oraInventory.

Adding read,write permissions for group.

Removing read,write,execute permissions for world.



Changing groupname of /u01/app/oraInventory tooinstall.

The execution of the script is complete.



[root@Ora12c database]#/u01/app/oracle/product/12.1.0/db_1/root.sh

Performing root user operation for Oracle 12c



The following environment variables are set as:

   ORACLE_OWNER= oracle

   ORACLE_HOME=  /u01/app/oracle/product/12.1.0/db_1



Enter the full pathname of the local bin directory:[/usr/local/bin]:

   Copyingdbhome to /usr/local/bin ...

   Copyingoraenv to /usr/local/bin ...

   Copyingcoraenv to /usr/local/bin ...





Creating /etc/oratab file...

Entries will be added to the /etc/oratab file asneeded by

Database Configuration Assistant when a database iscreated

Finished running generic part of root script.

Now product-specific root actions will beperformed.

[root@Ora12c database]#















3. 查询数据库信息





[oracle@Ora12c ~]$ sqlplus / as sysdba



SQL*Plus: Release 12.1.0.1.0 Production on Thu Apr24 12:00:39 2014



Copyright (c) 1982, 2013, Oracle.  All rights reserved.





Connected to:

Oracle Database 12c Enterprise Edition Release12.1.0.1.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics andReal Application Testing options



SQL> set lin 140

SQL> select * from v$version;



BANNER                                                                              CON_ID

------------------------------------------------------------------------------------------

OracleDatabase 12c Enterprise Edition Release 12.1.0.1.0 - 64bit Production              0

PL/SQLRelease 12.1.0.1.0 - Production                                                    0

CORE    12.1.0.1.0      Production                                                       0

TNSfor Linux: Version 12.1.0.1.0 - Production                                            0

NLSRTLVersion 12.1.0.1.0 - Production                                                    0



SQL> SELECT CDB FROM V$DATABASE;



CDB

---

YES



SQL> select PDB_NAME,CON_UID,pdb_id,status fromdba_pdbs;



PDB_NAME                CON_UID     PDB_ID STATUS

-------------------- ---------- -----------------------

PDBCNDBA              426143573          3 NORMAL

PDB$SEED            4088301206          2 NORMAL





SQL> select con_id,dbid,NAME,OPEN_MODE fromv$pdbs;



   CON_ID       DBID NAME                           OPEN_MODE

---------- ---------- ----------------------------------------

         24088301206 PDB$SEED                      READ ONLY

        3  426143573 PDBCNDBA                       READ WRITE





SQL> show con_name



CON_NAME

------------------------------

CDB$ROOT



SQL> alter session set container=pdbcndba;



Session altered.



SQL> show con_name



CON_NAME

------------------------------

PDBCNDBA



SQL> show con_name



CON_NAME

------------------------------

PDBCNDBA



SQL> create table cndba as select * fromall_users;

Table created.



SQL> alter session set container=CDB$ROOT;

Session altered.



SQL> select count(1) from cndba;

select count(1) from cndba

                    *

ERROR at line 1:

ORA-00942: table or view does not exist











--------------------------------------------------------------------------------------------
