SSH整合中正确配置以及实例
栏目：互联网时间：2014-09-30 06:23:49
mysql数据库表已经字段：
项目文件结构：
调试过程中要注意的事项：
①：applicationContext.xml文件要放在src目录下
②：容易出错的地方如下代码中字体为红色处
常见错误请参看：http://blog.163.com/jxguo_05/blog/static/71940100201023185653156/ & http://blog.sina.com.cn/s/blog_6757442e0100xumy.html &
http://blog.csdn.net/yabushandaxue/article/details/39473593
各工具版本：struts2.3.4 、hibernate 3.6.0 spring3.1.3
jar包：如下：下载地址：http://download.csdn.net/detail/sxf1997/7976797
这里是一个简单的利用ssh整合的页面登陆界面
代码如下：
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
id="WebApp_ID" version="3.0">
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<session-config>
<session-timeout>30</session-timeout>
</session-config>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
</web-app>
struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
"http://struts.apache.org/dtds/struts-2.3.dtd">
<struts>
<span style="color:#ff0000;"><package name="Action" namespace="/" extends="struts-default"></span>
<!-- 登录 -->
<action name="login" class="Action.LoginServiceAction">
<result name="success">/success.jsp</result>
<result name="error">/login.jsp</result>
</action>
</package>
</struts>
login.jsp
<%@ page language="java" contentType="text/html; charset=gb2312"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
<title>Insert title here</title>
</head>
<body>
<h1>欢迎登录</h1>
<span style="color:#ff0000;"><s:form action="login.action" method="post" namespace="/"></span>
<s:textfield name="username" label="账号"></s:textfield>
<s:password name="password" label="密码"></s:password>
<s:submit value="登陆"></s:submit>
</s:form>
</body>
</html>
success.jsp
<%@ page language="java" contentType="text/html; charset=gb2312"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
<title>Insert title here</title>
</head>
<body>
<h1>欢迎你，<s:property value="username"/>登陆成功！</h1>
</body>
</html>
登陆页面处理的action
package Action;
import java.util.List;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import DAO.UserDao;
import PO.User;
import com.opensymphony.xwork2.ActionSupport;
public class LoginServiceAction extends ActionSupport {
/**
*
*/
private static final long serialVersionUID = 1L;
/**
*
*/
private String username;
private String password;
<span style="color:#ff0000;">ClassPathXmlApplicationContext ctx=new ClassPathXmlApplicationContext("applicationContext.xml");</span>
UserDao userDao=(UserDao) ctx.getBean("userDao");
/**
* @return the username
*/
public String getUsername() {
return username;
}
/**
* @param username the username to set
*/
public void setUsername(String username) {
this.username = username;
}
/**
* @return the password
*/
public String getPassword() {
return password;
}
/**
* @param password the password to set
*/
public void setPassword(String password) {
this.password = password;
}
/* (non-Javadoc)
* @see com.opensymphony.xwork2.ActionSupport#execute()
*/
@Override
public String execute() throws Exception {
// TODO Auto-generated method stub
//查找账号相符的用户
List<User>userlist=userDao.findByName(username);
//使用简化的for语句对集合进行遍历并比较用户的密码
for(User user : userlist){
if(user.getPassword().equals(password)){
return SUCCESS;
}else {
return ERROR;
}
}
return ERROR;
}
}
处理方法的接口 （ DAO包）
package DAO;
import java.util.List;
import PO.User;
public interface UserDao {
/**
* 加载User实例
* @参数id知道需要加载的User实例的主键值
* @return 返回加载的User实例
* */
User get(Integer id);
/**
* 保存User实例
* @参数user知道需要保存的User实例
* @return 返回刚刚保存的User实例的标识属性值
* */
Integer save(User user);
/**
* 根据用户名查找User
* @参数那么知道查询的用户名
* @return返回用户名对呀的全部User
* */
List<User>findByName(String name);
}
实现接口的类ImplDao.UserImpl
package ImplDao;
import java.util.List;
import org.hibernate.SessionFactory;
import org.springframework.orm.hibernate3.HibernateTemplate;
import DAO.UserDao;
import PO.User;
public class UserDaoImpl implements UserDao {
//实例化一个HibernateTemplate对象，用于执行持久化操作
private HibernateTemplate ht=null;
//Hibernate持久化操作所需SessionFactory
private SessionFactory sessionFactory=null;
//用户依赖注入的setter方法
public void setSessionFactory(SessionFactory sessionFactory){
this.sessionFactory=sessionFactory;
}
//初始化HibernateTemplate方法
private HibernateTemplate gethiHibernateTemplate(){
if(ht==null){
ht=new HibernateTemplate(sessionFactory);
}
return ht;
}
@Override
public User get(Integer id) {
// TODO Auto-generated method stub
//获取对应表中id为某个值的数据，id为主键索引
return gethiHibernateTemplate().get(User.class, id);
}
@Override
public Integer save(User user) {
// TODO Auto-generated method stub
return (Integer)gethiHibernateTemplate().save(user);
}
@SuppressWarnings("unchecked")
@Override
public List<User> findByName(String name) {
// TODO Auto-generated method stub
return (List<User>)gethiHibernateTemplate().find("from User u where u.name=?",name);
}
}
PO（hibernate映射数据表的字段）
package PO;
import java.io.Serializable;
public class User implements Serializable{
/**
*
*/
private static final long serialVersionUID = 6810795086071173792L;
private Integer intId;
private String name;
private String password;
public User(){}
public User(Integer intId,String name,String password){
this.intId=intId;
this.name=name;
this.password=password;
}
/**
* @return the intId
*/
public Integer getIntId() {
return intId;
}
/**
* @param intId the intId to set
*/
public void setIntId(Integer intId) {
this.intId = intId;
}
/**
* @return the name
*/
public String getName() {
return name;
}
/**
* @param name the name to set
*/
public void setName(String name) {
this.name = name;
}
/**
* @return the password
*/
public String getPassword() {
return password;
}
/**
* @param password the password to set
*/
public void setPassword(String password) {
this.password = password;
}
}
User.hbm.xml(PO对象的映射文件)
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
"-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
<class name="PO.User" table="t_use_info" catalog="test">
<id name="intId" type="integer">
<column name="int_id"/>
<generator class="increment"/>
</id>
<property name="name" type="string">
<column name="name" length="32" not-null="true"/>
</property>
<property name="password" type="string">
<column name="password" length="32" not-null="true"/>
</property>
</class>
</hibernate-mapping>
hibernate和spring3的配置（applicationContext.xml）
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<!-- default-autowire="byName" -->
<!-- 定义数据库数据源 -->
<bean id="abcd" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName">
<value>com.mysql.jdbc.Driver</value>
</property>
<property name="url">
<value>jdbc:mysql://localhost/test</value>
</property>
<property name="username">
<value>test</value>
</property>
<property name="password">
<value>test</value>
</property>
</bean>
<!-- 定义会话工厂 ，并注入数据源实例dataSource -->
<bean id="sessionFactory" class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
<property name="dataSource">
<ref bean="abcd"/>
</property>
<property name="hibernateProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
<property name="mappingResources">
<list>
<value>PO/User.hbm.xml</value>
</list>
</property>
</bean>
<!-- HibernateTemplate类是简化Hibernate数据访问代码的辅助类，可以获取一个session对象 -->
<bean id="hibernateTemplate" class="org.springframework.orm.hibernate3.HibernateTemplate">
<property name="sessionFactory">
<ref bean="sessionFactory"/>
</property>
<property name="allowCreate">
<value>true</value>
</property>
</bean>
<!-- 依赖注入 -->
<bean id="userDao" class="ImplDao.UserDaoImpl">
<!-- 注入持久化操作所需的sessionfactory -->
<property name="sessionFactory">
<ref bean="sessionFactory"/>
</property>
</bean>
</beans>

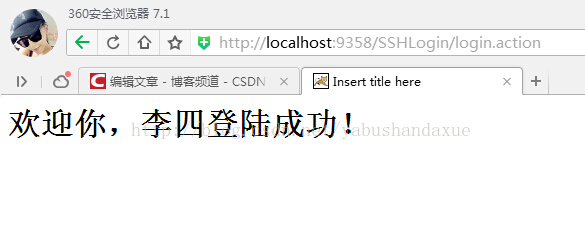

登陆效果：
