通过Java源码分析初探观察者模式(一)
栏目：综合技术时间：2016-06-21 11:43:19
对视察者，很多开发者其实不陌生，在平常开发进程中，这也是1个非常常见的设计模式，特别是Android小火伴，很多人都知道broadcast就是1个典型的视察者模式，还有最近很火的rxjava，响应式编程中，视察者模式扮演着1个很重要的角色，但视察者模式具体是怎样样运转的，部份小火伴就有点模糊了。

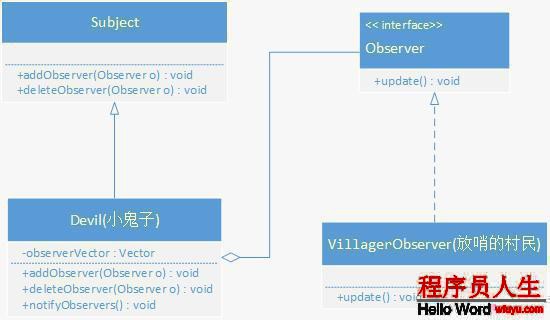

先从平常生活中1个例子开始说起，在看电视的进程中，我们常常看到1些抗日神剧中有这么1个剧情，鬼子进村，在进村的进程中，总会有1些1些人透风报信，然后通知村里的人能躲的躲，能藏的藏，能跑的跑，或中路再弄个埋伏，抓到了以后是手撕还是其它方式处理，在此就先不做讨论。。。其实这个进程中就是1个典型的视察者模式，下面，我们先看1下手撕鬼子的UML。
DevilsSubject.java
/**
*
* created by zm on 2016⑸⑵8
* 继承Observable，此类同等于上述UML的Devil(小鬼子)，其它对号入坐
* 视察鬼子是不是来攻击
*
*/
public class DevilsSubject extends Observable
{
private String assault;
public String isAssault() {
return assault;
}
public void setAssault(String assault) {
this.assault = assault;
//可通过this.hasChanged()获得是不是产生改变，这里我们统1设置成改变，以便测试
this.setChanged();
this.notifyObservers(assault);
}
}VillagerObserver.java
/**
*
* created by zm on 2016⑸⑵8
*
* VillagerObserver(放哨的村民)，视察小鬼子行动
*
*/
public class VillagerObserver implements Observer
{
public void update(Observable o, Object obj) {
// TODO Auto-generated method stub
String assault = (String) obj;
System.out.println(assault);
}
}Client.java
public class Client
{
public static void main(String[] args) {
VillagerObserver yes = new VillagerObserver();
VillagerObserver no = new VillagerObserver();
DevilsSubject devilsSubject = new DevilsSubject();
//如果视察者与集合中已有的视察者不同，则向对象的视察者集中添加此视察者。
devilsSubject.addObserver(yes);
devilsSubject.addObserver(no);
devilsSubject.setAssault("前方有1坨鬼子来了");
devilsSubject.setAssault("鬼子见阎王了，在来村的路上就被村民手撕了");
//返回 Observable 对象的视察者数目
System.out.println(devilsSubject.countObservers());
System.out.println("................");
devilsSubject.deleteObserver(yes);
devilsSubject.setAssault("鬼子来了");
System.out.println(devilsSubject.countObservers());
}
}运行的结果：
前方有1坨鬼子来了
前方有1坨鬼子来了
鬼子见阎王了，在来村的路上就被村民手撕了
鬼子见阎王了，在来村的路上就被村民手撕了
Observable对象的视察者数目:2个
................
鬼子来了
Observable对象的视察者数目:1个下面是observable源码
package java.util;
/**
* This class represents an observable object, or "data"
* in the model-view paradigm. It can be subclassed to represent an
* object that the application wants to have observed.
* <p>
* An observable object can have one or more observers. An observer
* may be any object that implements interface <tt>Observer</tt>. After an
* observable instance changes, an application calling the
* <code>Observable</code>'s <code>notifyObservers</code> method
* causes all of its observers to be notified of the change by a call
* to their <code>update</code> method.
* <p>
* The order in which notifications will be delivered is unspecified.
* The default implementation provided in the Observable class will
* notify Observers in the order in which they registered interest, but
* subclasses may change this order, use no guaranteed order, deliver
* notifications on separate threads, or may guarantee that their
* subclass follows this order, as they choose.
* <p>
* Note that this notification mechanism has nothing to do with threads
* and is completely separate from the <tt>wait</tt> and <tt>notify</tt>
* mechanism of class <tt>Object</tt>.
* <p>
* When an observable object is newly created, its set of observers is
* empty. Two observers are considered the same if and only if the
* <tt>equals</tt> method returns true for them.
*
* @author Chris Warth
* @see java.util.Observable#notifyObservers()
* @see java.util.Observable#notifyObservers(java.lang.Object)
* @see java.util.Observer
* @see java.util.Observer#update(java.util.Observable, java.lang.Object)
* @since JDK1.0
*/
public class Observable {
private boolean changed = false;
private Vector<Observer> obs;
/** Construct an Observable with zero Observers. */
public Observable() {
obs = new Vector<>();
}
/**
* Adds an observer to the set of observers for this object, provided
* that it is not the same as some observer already in the set.
* The order in which notifications will be delivered to multiple
* observers is not specified. See the class comment.
*
* @param o an observer to be added.
* @throws NullPointerException if the parameter o is null.
*/
public synchronized void addObserver(Observer o) {
if (o == null)
throw new NullPointerException();
if (!obs.contains(o)) {
obs.addElement(o);
}
}
/**
* Deletes an observer from the set of observers of this object.
* Passing <CODE>null</CODE> to this method will have no effect.
* @param o the observer to be deleted.
*/
public synchronized void deleteObserver(Observer o) {
obs.removeElement(o);
}
/**
* If this object has changed, as indicated by the
* <code>hasChanged</code> method, then notify all of its observers
* and then call the <code>clearChanged</code> method to
* indicate that this object has no longer changed.
* <p>
* Each observer has its <code>update</code> method called with two
* arguments: this observable object and <code>null</code>. In other
* words, this method is equivalent to:
* <blockquote><tt>
* notifyObservers(null)</tt></blockquote>
*
* @see java.util.Observable#clearChanged()
* @see java.util.Observable#hasChanged()
* @see java.util.Observer#update(java.util.Observable, java.lang.Object)
*/
public void notifyObservers() {
notifyObservers(null);
}
/**
* If this object has changed, as indicated by the
* <code>hasChanged</code> method, then notify all of its observers
* and then call the <code>clearChanged</code> method to indicate
* that this object has no longer changed.
* <p>
* Each observer has its <code>update</code> method called with two
* arguments: this observable object and the <code>arg</code> argument.
*
* @param arg any object.
* @see java.util.Observable#clearChanged()
* @see java.util.Observable#hasChanged()
* @see java.util.Observer#update(java.util.Observable, java.lang.Object)
*/
public void notifyObservers(Object arg) {
/*
* a temporary array buffer, used as a snapshot of the state of
* current Observers.
*/
Object[] arrLocal;
synchronized (this) {
/* We don't want the Observer doing callbacks into
* arbitrary code while holding its own Monitor.
* The code where we extract each Observable from
* the Vector and store the state of the Observer
* needs synchronization, but notifying observers
* does not (should not). The worst result of any
* potential race-condition here is that:
* 1) a newly-added Observer will miss a
* notification in progress
* 2) a recently unregistered Observer will be
* wrongly notified when it doesn't care
*/
if (!changed)
return;
arrLocal = obs.toArray();
clearChanged();
}
for (int i = arrLocal.length-1; i>=0; i--)
((Observer)arrLocal[i]).update(this, arg);
}
/**
* Clears the observer list so that this object no longer has any observers.
*/
public synchronized void deleteObservers() {
obs.removeAllElements();
}
/**
* Marks this <tt>Observable</tt> object as having been changed; the
* <tt>hasChanged</tt> method will now return <tt>true</tt>.
*/
protected synchronized void setChanged() {
changed = true;
}
/**
* Indicates that this object has no longer changed, or that it has
* already notified all of its observers of its most recent change,
* so that the <tt>hasChanged</tt> method will now return <tt>false</tt>.
* This method is called automatically by the
* <code>notifyObservers</code> methods.
*
* @see java.util.Observable#notifyObservers()
* @see java.util.Observable#notifyObservers(java.lang.Object)
*/
protected synchronized void clearChanged() {
changed = false;
}
/**
* Tests if this object has changed.
*
* @return <code>true</code> if and only if the <code>setChanged</code>
* method has been called more recently than the
* <code>clearChanged</code> method on this object;
* <code>false</code> otherwise.
* @see java.util.Observable#clearChanged()
* @see java.util.Observable#setChanged()
*/
public synchronized boolean hasChanged() {
return changed;
}
/**
* Returns the number of observers of this <tt>Observable</tt> object.
*
* @return the number of observers of this object.
*/
public synchronized int countObservers() {
return obs.size();
}

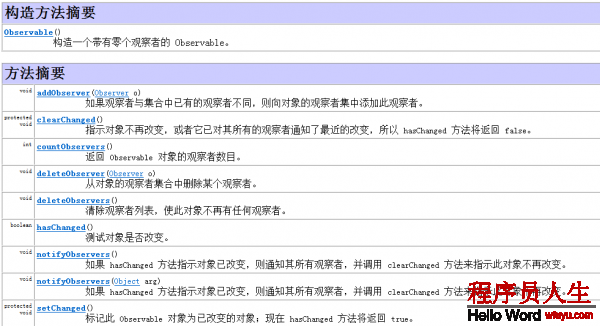

}再附上Observable的api
根据源码中最上部份的注释，翻译成中文后，大体的意思是此类是1个被视察者。它可以派生子类来表示1个利用程序想要视察的对象。1个可视察到的对象(observable)可以有1个或多个视察者(observer)。1个视察者可以是任何实现接口的视察者的对象。修改后可视察到的实例,利用程序调用notifyObservers方法使所有的视察者调用更新方法。通知的顺序将是未指定的。请注意,这与线程通知机制无关,完全独立于类对象的等待和通知机制。当1个可视察的对象是新创建的,它的视察是空的。当且仅当这个方法返回true，两个视察者是同步的。
源码中，起关键性作用的就是vector和changed，在observable实例化的时候，就初始化了1个空的vector，可以通过vector添加和移除vector操作后，当observable产生改变时，通过changed去判断是不是通知，在我们的上述示例代码中使用setChanged()，主要是由于第1次加入的时候，不会去调用observer的update方法，也就是changed为false，当changed为false时，直接从notifyObservers方法中return，只有changed为true的时候才通知刷新，刷新之前，重新把changed赋值为false，提取上述源码中的关键代码以下：
public void notifyObservers(Object arg) {
Object[] arrLocal;
synchronized (this) {
if (!changed)
return;
arrLocal = obs.toArray();
clearChanged();
}
for (int i = arrLocal.length-1; i>=0; i--)
((Observer)arrLocal[i]).update(this, arg);
}observer类
/**
* A class can implement the <code>Observer</code> interface when it
* wants to be informed of changes in observable objects.
*
* @author Chris Warth
* @see java.util.Observable
* @since JDK1.0
*/
public interface Observer {
/**
* This method is called whenever the observed object is changed. An
* application calls an <tt>Observable</tt> object's
* <code>notifyObservers</code> method to have all the object's
* observers notified of the change.
*
* @param o the observable object.
* @param arg an argument passed to the <code>notifyObservers</code>
* method.
*/
void update(Observable o, Object arg);
}observer就是1个接口，里面1个update方法，这个类没太多需要解释的，有点Java基础的都可以明白。
现在1目了然了，Observer模式是1种行动模式，它的作用是当1个对象的状态产生改变的时候，能够自动通知其他关联对象，自动刷新对象状态。Observer模式提供给关联对象1种同步通讯的手段，使其某个对象与依赖它的其他对象之间保持状态同步。

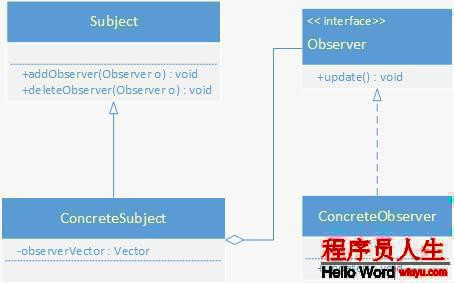

抽象主题角色（Subject）内部其实就是1个Vector，在addObserver的时候，就把需要的视察者添加到Vector中。在deleteObserver的时候，就把传进来的视察者从容器中移除掉。主题角色又叫抽象被视察者角色(observable)，1般用1个抽象类或接口来实现。
observable与observer是1种1对多的依赖关系，可让多个视察者对象同时监听某1个主题对象。视察者模式有时被称作发布/定阅模式(Publish/Subscribe)，对这名称很贴切的，就好比我们定阅了报纸，每次报社新报纸出版发售的时候，就会根据定阅的客户逐一发报纸，通知客户浏览。
ConcreteSubject：具体主题角色，将相干状态存入具体视察者对象。具体主题角色又叫具体被视察者角色(ConcreteObservable)。
ConcreteObserver：具体视察者角色，实现抽象视察者角色(observer)所需要的更新接口，以便使自己状态和主题状态相调和。
总结：通过依赖抽象而不是依赖具体类，去实现1个类中某个状态的改变，而通知相干的1些类去做出相应的改变，进而保持同步状态。实现这样的方式也许有很多种，但是为了使系统能够易于复用，应当选择第耦合度的方案。减少对象之间的耦合度有益于系统的复用，在保证低耦合度的条件下并且能够保持行动的调和1致，保证高度协作，视察者模式是1种很好的设计方案。
